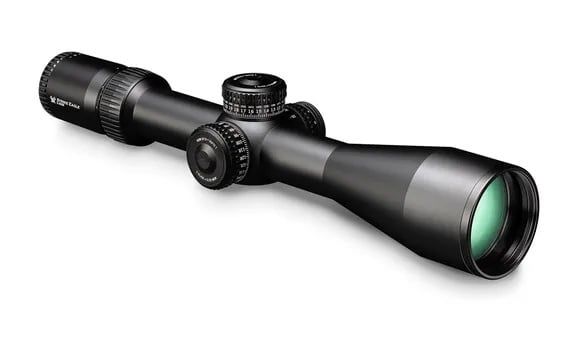

When success rides on the perfect shot, rely on the exceptional versatility and optical performance of Viper® HD. From big game to predators, there’s a proven model for every hunting application. Each member of the Viper® HD family delivers outstanding image clarity, resolution, and sharpness to ensure your target comes into view with sharp detail. Viper® HD also boasts enhanced features for unmatched accuracy at extended ranges while also excelling in the low light of dawn and dusk when game is most active.
Reticle
VMR-3 (MRAD) Designed to maximize long-distance shooting and ranging abilities, the VMR-3 reticle can be used to effectively determine ranges, holdovers, windage corrections, and moving target leads. The fine center crosshair subtensions on the VMR-3 reticle were carefully chosen to provide the optimum balance between precision aiming and low-light visibility.
Specification
| Magnification | 5-25x |
|---|---|
| Objective Lens Diameter | 50 mm |
| Focal Plane | Second Focal Plane |
| Reticle | VMR-3 (MRAD) |
| Turret Style | Exposed Elevation Capped Windage |
| Tube Size | 30 mm |
| Adjustment Graduation | .1 MRAD |
| Parallax Setting | 20 yds. - ∞ |
| Max Windage Adjustment | 12.4 MRAD |
| Max Elevation Adjustment | 20MRAD |
| Travel Per Rotation | 10 MRAD |
| Total Elevation Adjustment w/ RevStop® installed | 18.9 MRAD |
| Field of View | 24.0' - 4.7' |
| Eye Relief | 3.4" |
| Length | 15.2" |
| Weight | 25.0 oz |
